Product classification
Details
Upper Arm Dock Bottom Car
Working height 25 meters, working speed 120㎡/h, water pressure 3000 bar
Classification:
Executive Tools
Key words:
E-mail：
Retail Price
Yuan
Market price
Yuan
Product Details
POWERX25 large arm vehicle, hull paint removal vehicle
Working height 25 meters, working speed 120㎡/h, water pressure 3000bar, water flow 100l/min, cleaning standard Wa2.5
POWERX 25 adopts a design that achieves optimal performance on large flat surfaces, ultra-high pressure water jet technology, utilizing POWER's patented technology with a core algorithm driven by al and advanced high-pressure components. The operational working height can reach 25 meters, with maximum efficiency of up to 120㎡/hour. powerx25 meets WJ-2/Wa2 cleaning standards.
Double blasting head, filter and recovery module, multi-axis articulated arm, hydraulic telescopic arm, electronic and hydraulic systems, wheel drive system, power system
| Dimensions |
14771mm×2720mm×3443mm |
|
Weight |
22T |
|
Blasting head |
566mm×1114mm |
|
Fuel tank |
200L |
|
Engine power |
96KW@2500rpm, Stage IV |
|
Travel speed |
0-2.2km/h |
|
Engine consumption |
≤14.8l/h |
|
Efficiency |
up to 120㎡ |
|
Working height |
up to 25m |
|
Max. water pressure |
3000bar |
|
Max. flow rate |
100l/min |
|
Cleaning standard |
≥Wa2/WJ-2 |

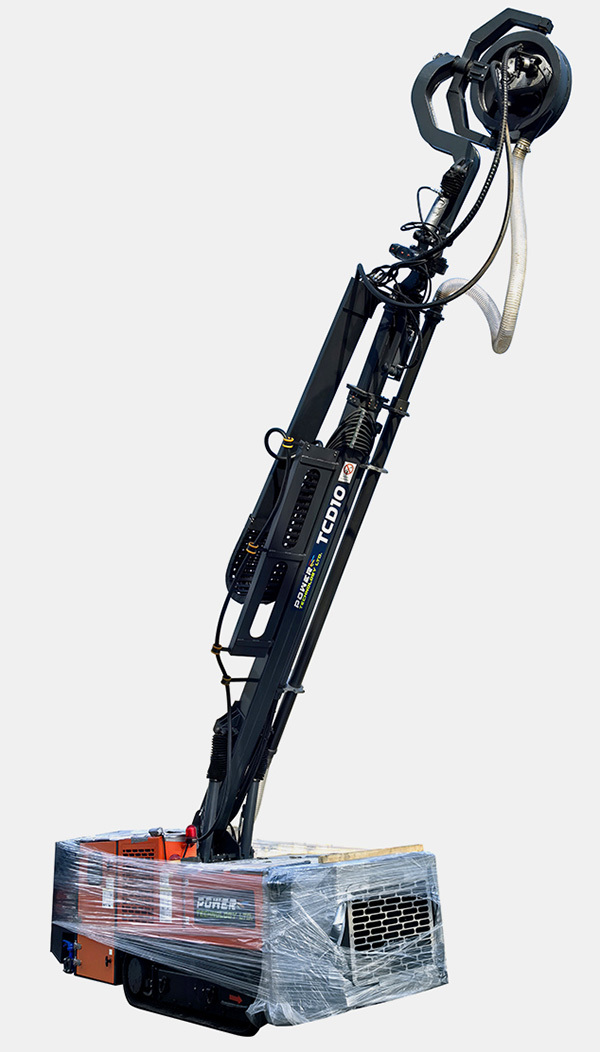

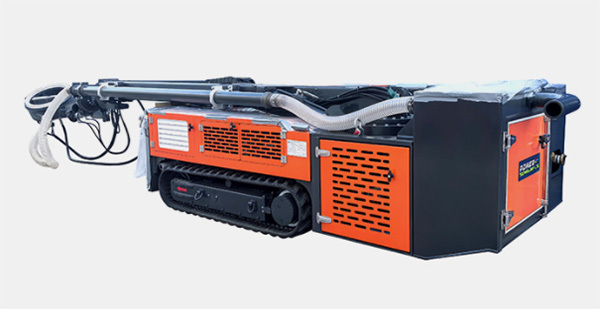

POWERD 10 dock bottom vehicle
Working height 10 meters, working speed 50㎡/h, water pressure 3000bar, water flow 50l/min, cleaning standard Wa2.5
Designed for optimal performance in low and curved areas, such as flat bottoms, bilge, bow and stern areas, POWERD 10 operates at a maximum water pressure of 3000bar, with a working height of up to 10 meters. It has a maximum efficiency of 50㎡/h, POWERD 10 meets WJ-2/Wa cleanliness standards, ensuring efficient hull cleaning and reliable surface treatment.
Blasting head, multi-axis articulated arm, hydraulic telescopic arm, power and hydraulic systems, track system, filter and recovery module
|
Wei |
8211mm×1490mm×1260mm |
|
Weight |
6.5T |
|
Blasting head |
566mm |
|
Fuel tank |
180L |
|
Engine power |
44.7KW@2800rpm, 4-cylinder |
|
Travel speed |
0-2km/h |
|
Engine consumption |
≤6.0l/h |
|
Efficiency |
up to 50㎡ |
|
Working height |
up to 10m |
|
Max. water pressure |
3000bar |
|
Max. flow rate |
50l/min |
|
Cleaning standard |
≥Wa2 /WJ-2 |

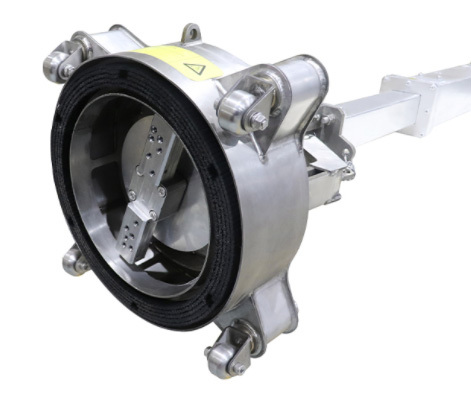

PW-ZXP semi-automatic rust removal disc
The PW-ZXP semi-automatic rust removal disc is a semi-automatic device used in conjunction with high-altitude vehicles. It is suitable for surface cleaning, paint removal, and rust removal of ships. It can be used in conjunction with a vacuum recovery system or used alone. Especially suitable for rust removal in spotted areas of ships.
| Pressure | 3000bar (Max) |
| Flow rate | 45L/min |
| Cleaning quality | WJ2/3 WJ4 |
| Cleaning efficiency | 15-30㎡/h |
| Adjustable length | 500mm |
With quick vacuum line connection interface, detachable design, made of lightweight materials
Recommended working conditions
Scenes such as heat exchangers, evaporation tanks, surface painting and rust removal, landmark cleaning, runway degluing,
Good stability, saves cleaning time; improves work efficiency, saves labor costs,
Liberates labor, and is easy to operate, ordinary workers can operate without training.
